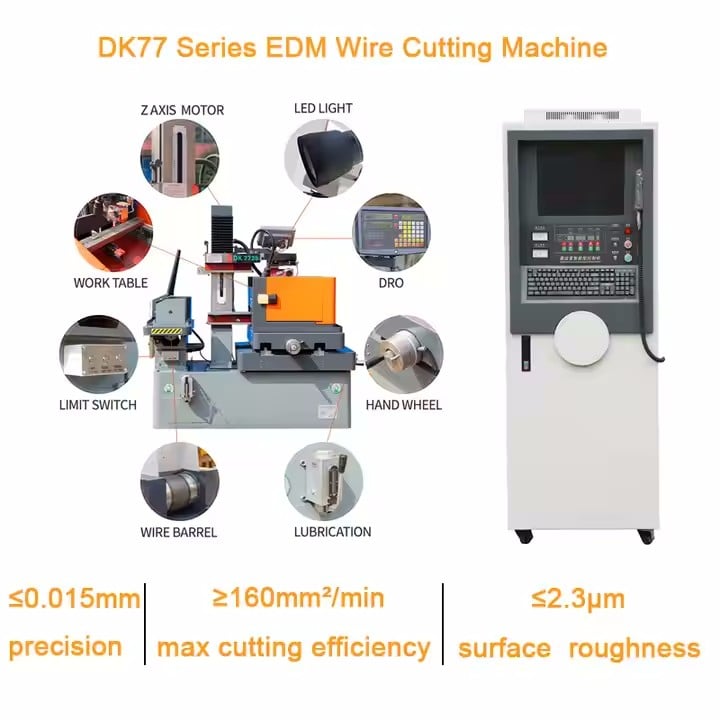

Autocut Control System DK7740 Electric Erosion 5 Axis Wire Cut Edm Machine Cnc Wirecut Edm 7740 Machine With DRO

Key attributes

Industry-specific attributes

Other attributes

Packaging and delivery

Product descriptions from the supplier

wire edm machine -- Optional:

 1.Taper cutting appliance. (±3°, ±30°)
 2.Straight guide rail
 3.Protective cover
 4.high speed controlling system
 5.medium-feeding wire controlling system
 6.integrated machine appliance
 7.autocut system,HL system,WinCut system,HF system
 8.DK77 Series can choose the Cutting Magnets
 9.DK77 Series can choose the Cutting Aluminium

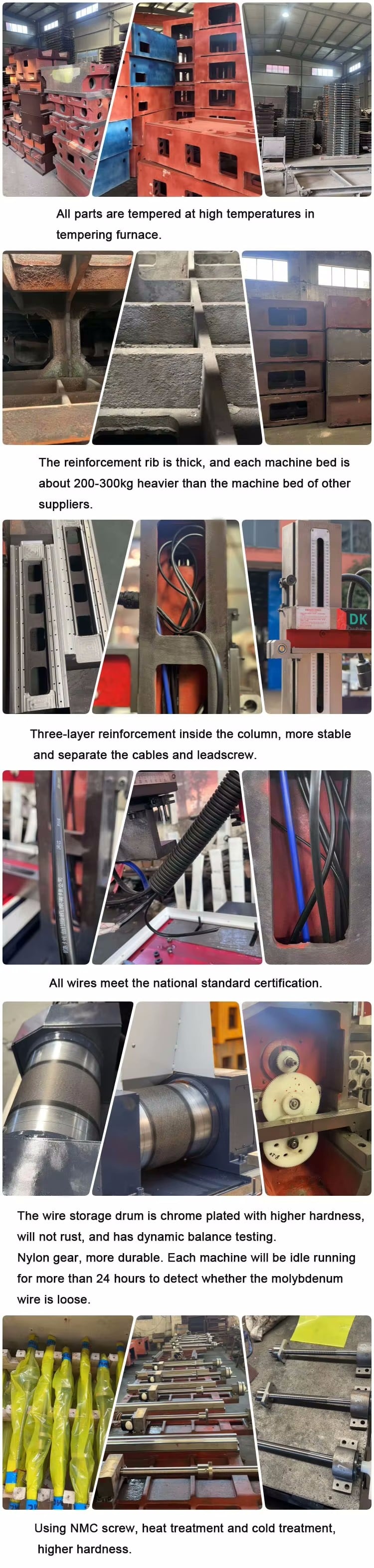

 Features of the cnc wire cut edm machine:

 Special supporting design of the machine with high strength and heavy loading capacity.
 The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.
 The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.
 The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good wear resistance.
 The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high
 transmission efficiency, good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is almost 0.Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).

Software System



Electric Cabinet

Company Profile

Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2003, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.

Certificates

Q:Are you manufacturer?
A: Yes, we are manufacturers ,we have our own technical team, and multiple production bases, welcome to visit us!

Q:How to choose the machine I want?
A: Firstly,please correspond to the worktable travel and material of the workpiece to find a suitable model;
Secondly,please check if precision and roughness meet your requirements;

Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.

Q: I`m worried about after-sales service!
A: Firstly,each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.We also have detailed instructional videos, even if novices can operate by watching the videos.
