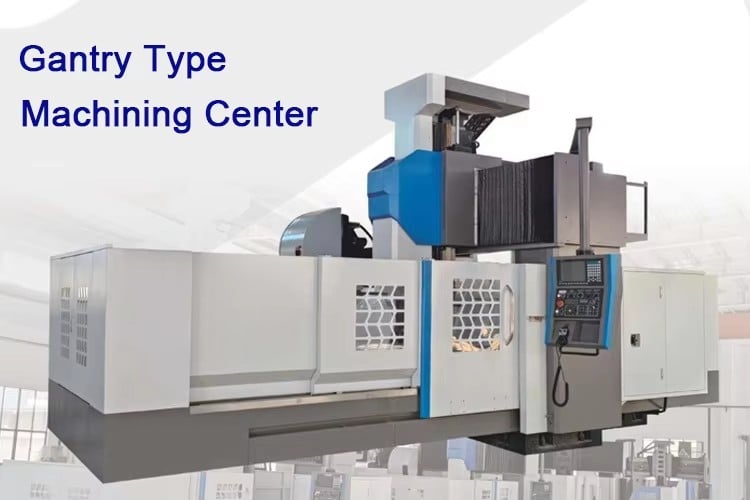

Home > Products > Machining Centre > Gantry Type Machining Center
- Table size (mm): 2500x6000
- Table travel (x) (mm): 6000
- Table travel (y) (mm): 3800
- Spindle taper: BT50
- No. of spindles: 3
- Type: Gantry
- Weight (t): 82
- Table travel (z) (mm): 1200
- Positioning accuracy (mm): 0.01/300
- Repeatability (x/y/z) (mm): 0.008/300
- Range of spindle speed(r.p.m): 0 - 6000 r.p.m
- Max. table load(kg): 20000 kg
- Min. time of tool change(s): 2.4
- Tool magazine capacity: 24
- Warranty: 1 Year
Key attributes
Industry-specific attributes
| table size (mm) | 2500x6000 |
| table travel (x) (mm) | 6000 |
| table travel (y) (mm) | 3800 |
Other attributes
| spindle taper | BT50 |
| no. of spindles | 3 |
| type | Gantry |
| weight (t) | 82 |
| table travel (z) (mm) | 1200 |
| positioning accuracy (mm) | 0.01/300 |
| repeatability (x/y/z) (mm) | 0.008/300 |
| range of spindle speed(r.p.m) | 0 - 6000 r.p.m |
| max. table load(kg) | 20000 kg |
| min. time of tool change(s) | 2.4 |
| tool magazine capacity | 24 |
| warranty | 1 Year |
| machining capacity | Heavy Duty |
| rapid feed speed(mm/min) | 1600 - 2400 mm/min |
| dimension(l*w*h) | 3200*2300*2900mm |
| cnc control system | Other |
| key selling points | Competitive Price, High-accuracy |
| place of origin | Jiangsu, China |
| brand name | CHUANGYUAN |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| Condition | New |
| Spindle Taper | BT50 |
| No. of Spindles | Single |
| Type | Gantry |
| Weight (T) | 82 |
| Warranty | 1 Year |
| Max. Table Load(kg) | 20000 |
| Gantry width(mm) | 2900 |
| Number of Axes | 3 |
| Tool Magazine Capacity | 24 |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 800X500X700 cm |
| Single gross weight: | 82000.000 kg |
| Gantry Type Machining Center--Parameter | ||||||
| Modle | SP1502 | SP2202B | SP2503 | SP2904B | SP3206B | |
| Worktable size (mm) | 1200×2100 | 1800×2000 | 2300×3000 | 2300×4000 | 2500×6000 | |
| Travel(X) | 2000 | 2200 | 2200 | 4000 | 6200 | |
| Travel(Y) | 1650 | 2200 | 2200 | 2900 | 3800 | |
| Travel(Z) | 800 | 1000 | 1000 | 1000 | 1250 | |
| Gantry width(mm) | 1650 | 2200 | 2200 | 2900 | 3200 | |
| Distance from spindle endto worktable (mm) | 175-975 | 250-1250 | 250-1250 | 60-1260 | 350-1600 | |
| Worktable T-slots (number-size x distance) | 7-22×150 | 9-22×180 | 11-28×200 | 11-28×200 | 13-28×200 | |
| Main specifcations | BT50 | BT50 | BT50 | BT50 | BT50 | |
| Spindle driveway | Gear head | Max speed 3000/4500/6000rpm | ||||
| zFreduction+ direct connection | ||||||
| Belt drve miling head | ||||||
| splndle motor power (kw) | 22 | 22 | 22 | 22 | 26 | |
| X-axis protect cover and bracketlength (mm) | 850 | 800 | 700 | 1000 | 1650 | |
| Maxload(kg) |
3000 |
4000 | 10000 | 12000 | 20000 | |
| Macthine weight (kg) |
28600 |
34000 | 46000 | 46000 | 82000 | |

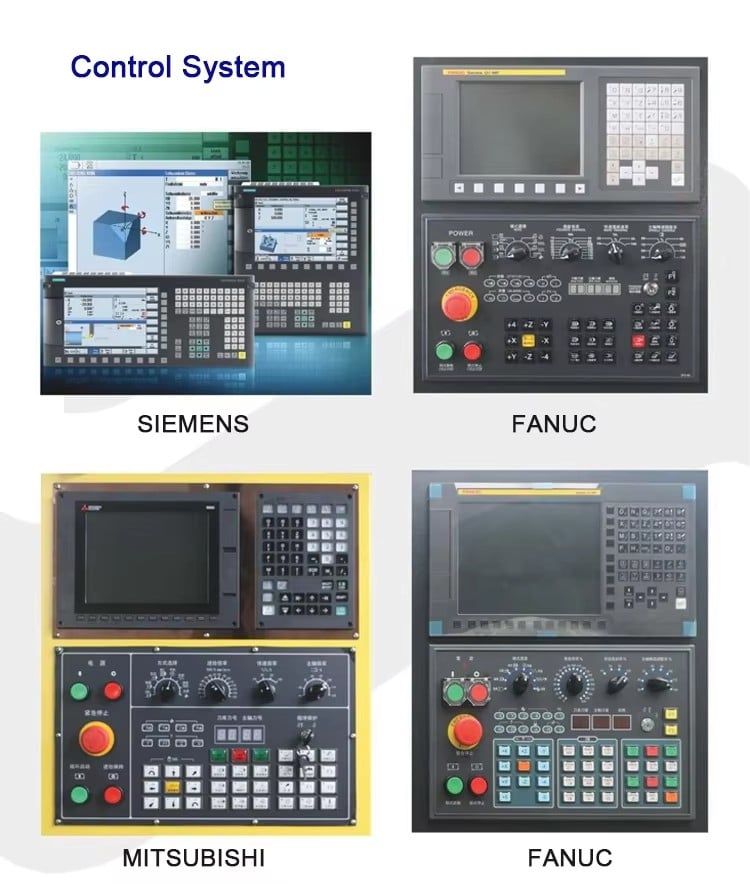

| system options | Mtsubish, Semens, FANUC. optionsl accoding touserequriements | |||||
FAQ
1.How can lget the price?
1)We usually quote within 24 hours after we get your inquiry (Except weekend and holi-days) lf you are very urgent to get the price,please email us or contact us in other ways sothat we can offer you a quote.
2.Are you a manufacture or trading company?
1)We have our own production factory, and also have close cooperation with other manufacturers. We can provide consignment services.
3. What is your lead time?
1)lt depends on the order quantity and the season you place the order.Usually we can shipwithin 7-15 days for small quantity.and about 30 days for large quantity.
4.What are the acceptable payment methods?
1)At present, we accept TT and PayPal. If the order amount exceeds $1000, we accept a 30% deposit and pay the remaining balance before shipment.
5.Is there a tracking number for my item?
1) Yes, of course. We usually ship your goods by EMS, DHL, Fedex, UPS, TNT with online track, you can view the ship status on website.
