- Cutting width (mm): 50 - 5000 mm
- Material thickness(mm): 0.2 - 3 mm
- Cutting speed(m/min): 80 - 120 mm
- No. of slitting lines: 5 - 12
- Voltage: 380V
- Coil weight (t): 15 T
- Rated power: 300KW
- Warranty: 1 Year
- Video outgoing-inspection: Provided
- Machinery test report: Provided
- Core components: PLC, Engine, Gear, Pump
- Place of origin: Jiangsu, China
- Brand name: ChuanYuan
- Dimension(l*w*h): 30*2*2M
- Key selling points: Easy to Operate
Key attributes
Industry-specific attributes
| Cutting width (mm) | 50 - 5000 mm |
| Material thickness(mm) | 0.2 - 3 mm |
| Cutting speed(m/min) | 80 - 120 mm |
| No. of slitting lines | 5 - 12 |
| Voltage | 380V |
Other attributes
| Coil weight (t) | 15 T |
| Rated power | 300KW |
| Warranty | 1 Year |
| Video outgoing-inspection | Provided |
| Machinery test report | Provided |
| Core components | PLC, Engine, Gear, Pump |
| Place of origin | Jiangsu, China |
| Brand name | ChuanYuan |
| Dimension(l*w*h) | 30*2*2M |
| Key selling points | Easy to Operate |
| Product Name | High speed slitting line steel metal coil slitting machine price |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Application | Steel Coil Cutting |
| Slitting Speed | 100m/min |
| Slitting Precision | 1.5mm |
| Warranty | One Year |
| Service | 24*7 Technical Support |
| Voltage | 220V/380V/415V/440V |
| Cutting Material | Carbon Steel,Galvanized Steel,Stainless Steel |
| Machine Type | steel coil slitting line |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 3010X210X210 cm |
| Single gross weight: | 55000.000 kg |

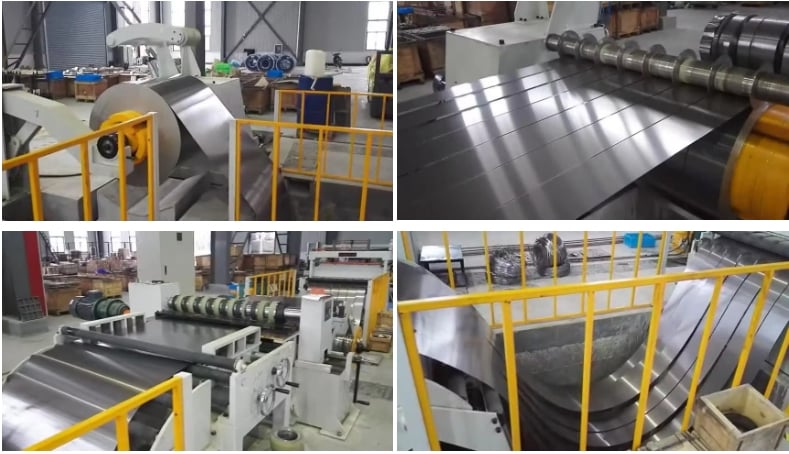

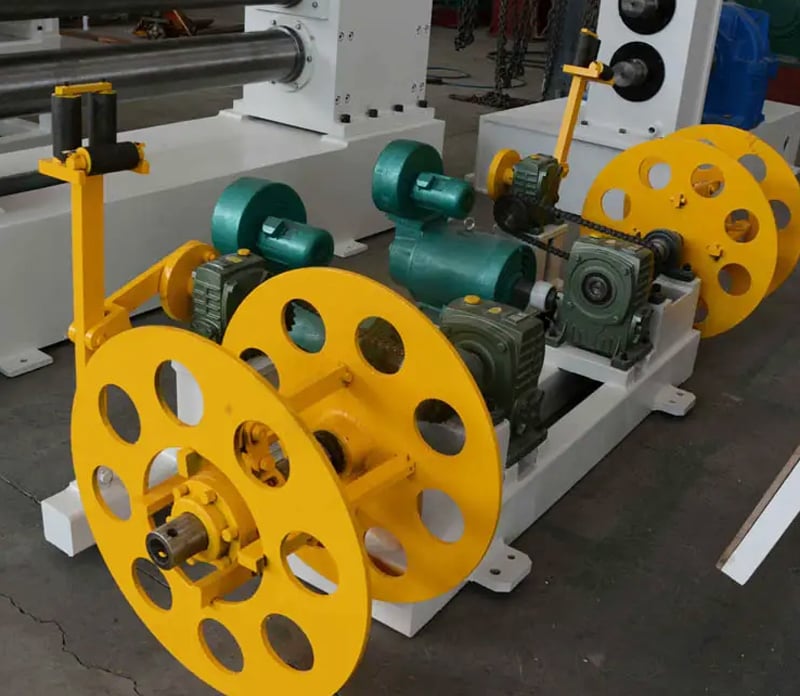

Slitting Line for Steel Coil Uncoiling Leveling Shearing Machine
Application: It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
Advantages: Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.

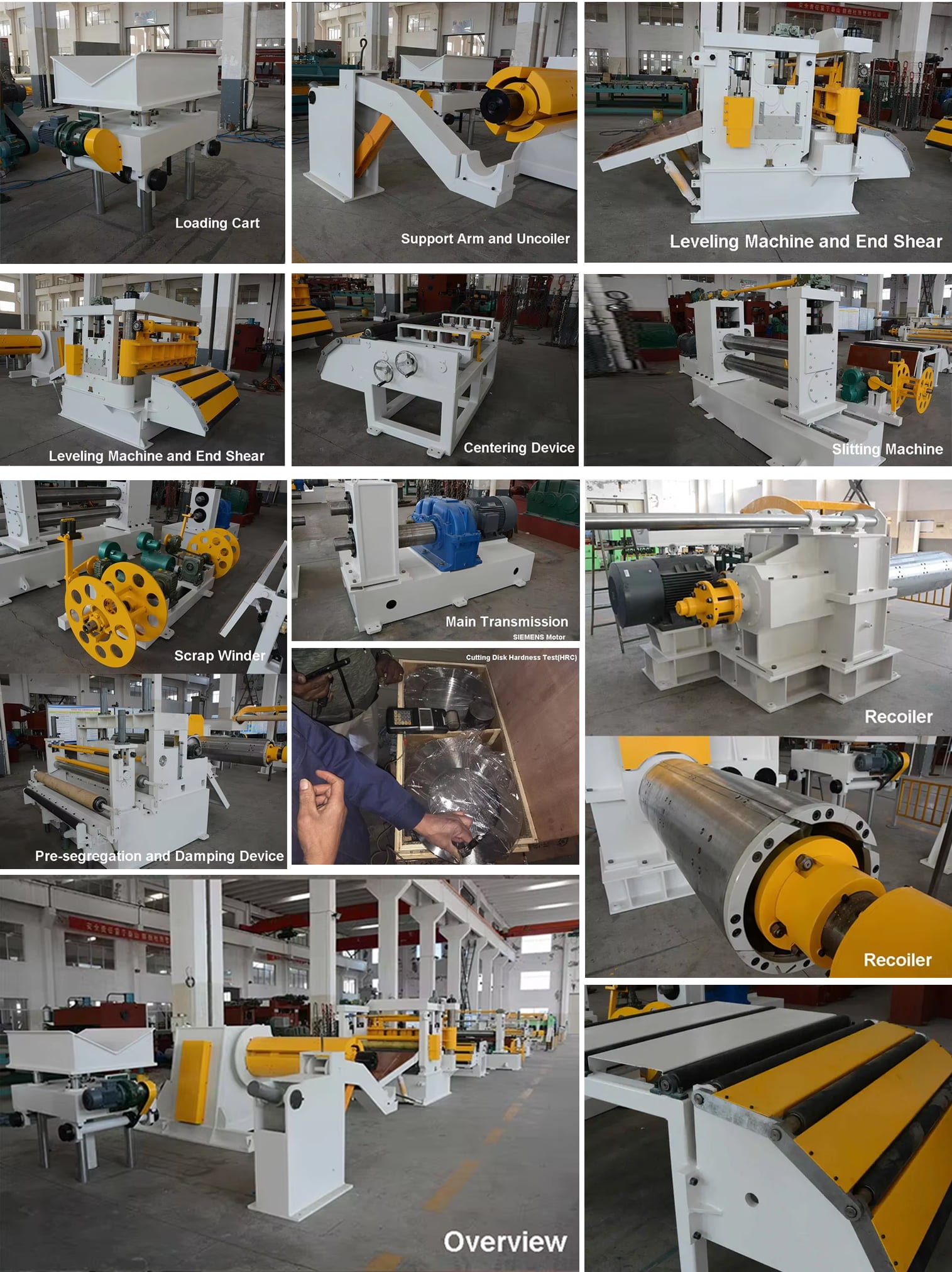

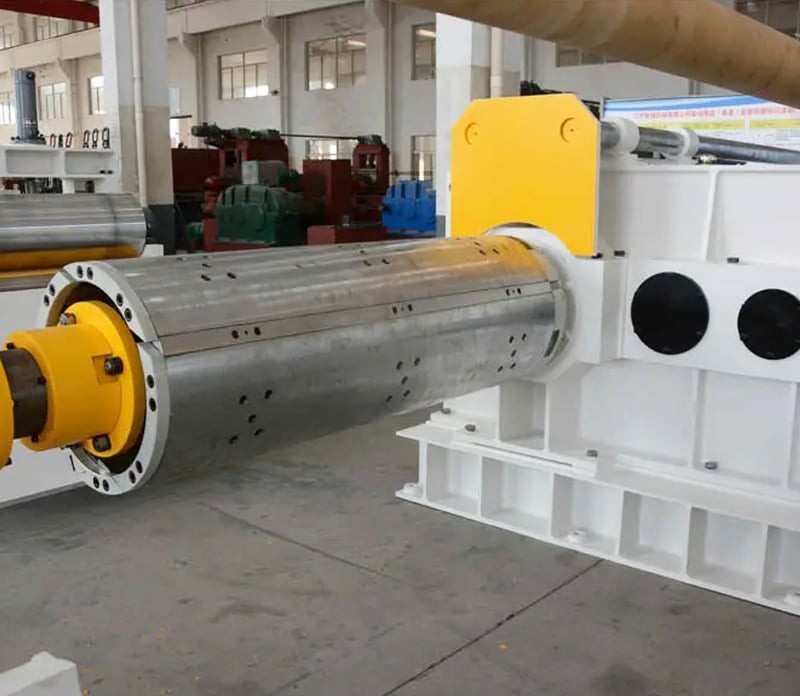

Structure: It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
Applicable materials: Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.
|
Processing Thickness
|
0.3~4.5mm
|
|
Processing Width
|
600-1600mm
|
|
Slitting Accuracy
|
±0.15 mm
|
|
Slitting Speed
|
120m/min
|
|
Coil Inner Diameter
|
500/610 mm
|
|
Coil Outer Diameter
|
≤2000 mm
|
|
Max. Slitting Numbers
|
6-22pcs
|
|
Slitting Coil Width
|
≥20 mm
|
|
......
|
......
|
|
Not limited to these parameters, custom made according to client practical demands.
|
|
Q:Are you manufacturer?
A: Yes, we are manufacturers of cut to length line,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!
Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,coil material, max. cutting length, cutting speed and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cut to length line are exported to many countries in the world. You can get higher quality product & better professional service from Hitech with same price.
