-Machine type:380V, 220V
-Sinker EDM:power (kw)
-Voltage:2
-Cnc or not:CNC
-Core components:PLC, Engine, Bearing, Gear
-Weight (kg):1096
-Warranty:1 Year
-Video outgoing-inspection:Provided
-Machinery test report:Provided
-Place of origin:Jiangsu, China
-Brand name:Chuangyuan
-Dimension(l*w*h):1410*1390*2190
-Key selling points:Competitive Price
-Dimension of working tank:850x570x350mm
Key attributes
Industry-specific attributes
machine type | 380V, 220V |
Sinker EDM | power (kw) |
voltage | 2 |
Other attributes
cnc or not | CNC |
core components | PLC, Engine, Bearing, Gear |
weight (kg) | 1096 |
warranty | 1 Year |
video outgoing-inspection | Provided |
machinery test report | Provided |
place of origin | Jiangsu, China |
brand name | Chuangyuan |
dimension(l*w*h) | 1410*1390*2190 |
key selling points | Competitive Price |
Dimension of working tank | 850x570x350mm |
Working table dimension | 600 x320mm |
Table travel (x,Y travel) | 350 x250mm |
Z axis travel | 200mm |
ZTravel of machine head | 200mm |
Dimension ofmachine(with oil tank) | 1650x1400 |
Dimension of oil tank | 1000x1300x455mm |
Max weight of electrode | 50kg |
Max load of working table | 500kg |
Weight of machine body | 1030 |
Packaging and delivery
Selling Units | Single item |
Single package size | 150X140X180 cm |
Single gross weight | 1500.000 kg |
Product descriptions from the supplier
Edm Die Sinking Machine--Parameter
|
||||||||
Model
|
unit
|

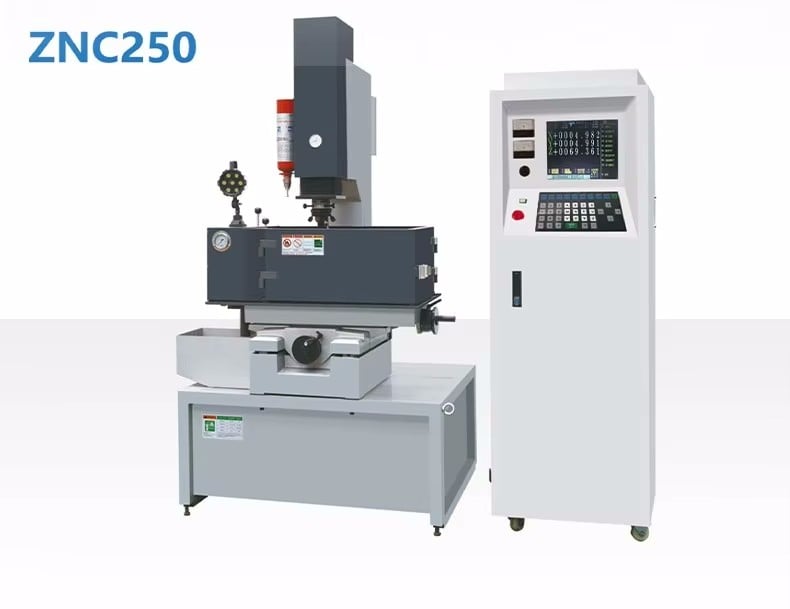

ZNC250
|
ZNC350
|
ZNC430
|
ZNC450
|
ZNC540
|
ZNC650
|
ZNC860
|
Dimension of working tank
|
mm
|
720x490x320
|
850x570x350
|
1000x580x370
|
1065x640x450
|
1160x690x500
|
1320x800x500
|
1730x1020x600
|
Working table dimension
|
mm
|
500x250
|
600x320
|
700x360
|
700x400
|
800x450
|
900x500
|
1200x700
|
Table travel (X, Y travel)
|
mm
|
250x160
|
350x250
|
400x300
|
450x350
|
500x400
|
600x500
|
800x600
|
Z axis travel
|
mm
|
200
|
200
|
200
|
210
|
220
|
220
|
260
|
Z Travel of machine head
|
mm
|
/
|
200
|
200
|
235
|
260
|
260
|
280
|
Max and Min height of spindle end to working table
|
mm
|
430/250
|
550/150
|
610/250
|
660/220
|
690/220
|
800/340
|
950/410
|
Dimension of oil tank
|
mm
|
1130x970x530
|
1000x1300x455
|
500x1400x550
|
750x1150x530
|
1100x1400x530
|
1100x1900x510
|
1400x2100x510
|
Max weight of electrode
|
kg
|
50
|
50
|
75
|
50
|
50
|
50
|
50
|
Max load of working table
|
kg
|
400
|
500
|
800
|
800
|
1000
|
1000
|
2000
|
Weight of machine body
|
kg
|
710
|
1030
|
1200
|
1500
|
1700
|
2100
|
3600
|
Dimension of machine (with oil tank)
|
mm
|
1250x1000
|
1650x1400
|
1700x1400
|
2100x1300
|
2400x1450
|
2500x1900
|
2750x2100
|
