- Applicable material: metal
- Laser type: Fiber Laser
- Condition: New
- Cutting area: 1500mm*3000mm
- Place of origin: Jiangsu, China
- Laser source brand: ipg Raycus
- Weight (kg): 1200 KG
- Key selling points: Competitive Price
- Warranty: 1 Year
- Mode of Operation: Continuous wave
- Configuration: 3-axis
- Products handled: Sheet Metal and Tube
- Feature: Water-cooled
- CNC or not: Yes

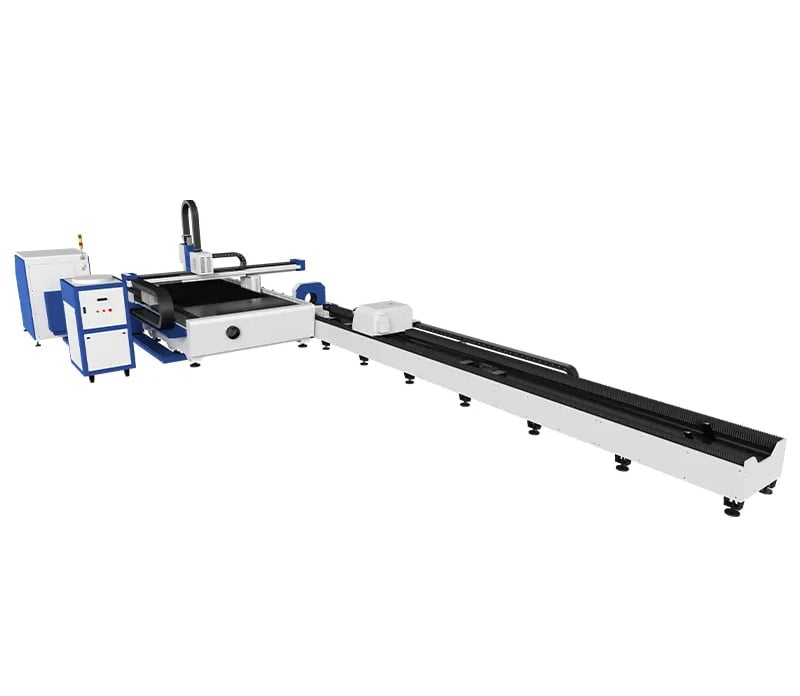

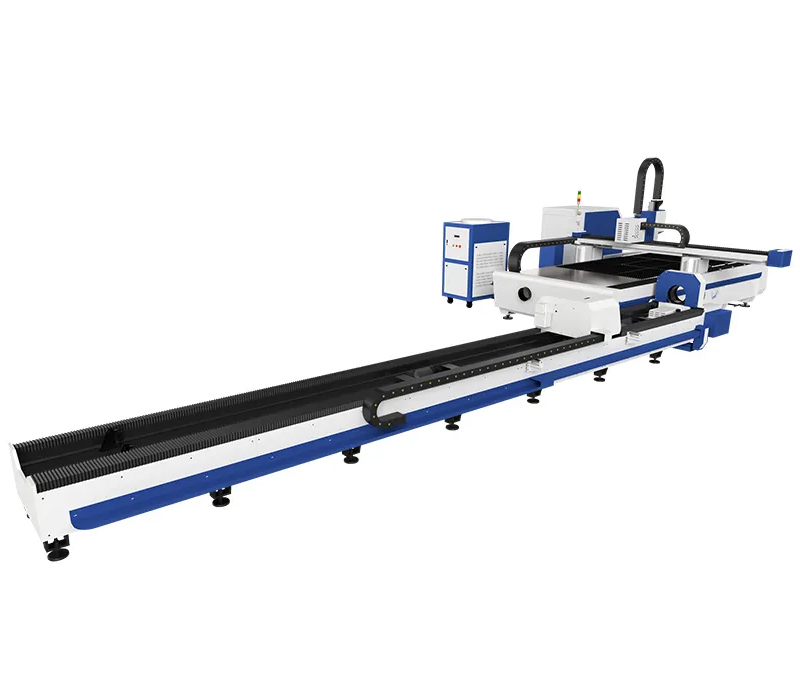

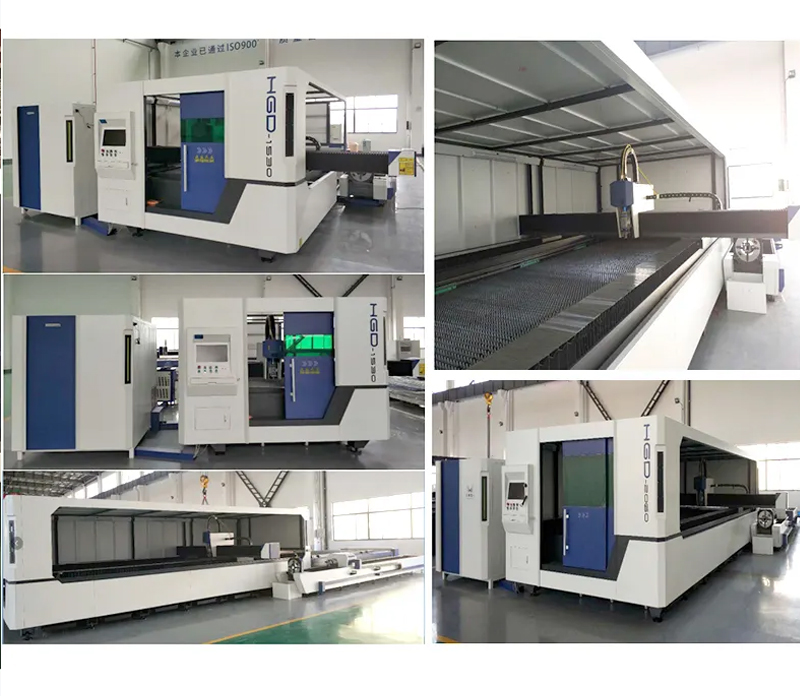

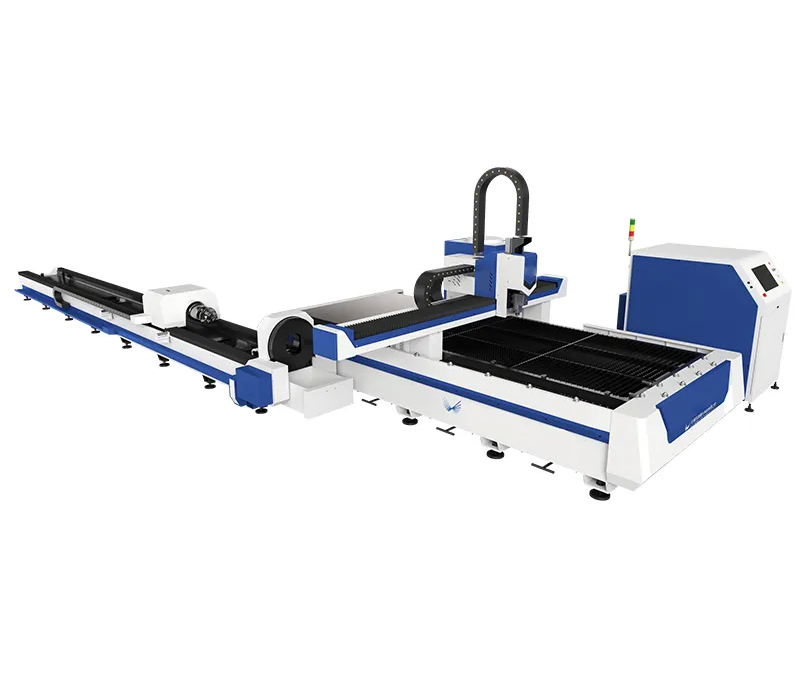

- Product name: Fiber Laser Metal Cutting Machine
Key attributes
Industry-specific attributes
| Applicable material | metal |
| Laser type | Fiber Laser |
Other attributes
| Condition | New |
| Cutting area | 1500mm*3000mm |
| Place of origin | Jiangsu, China |
| Laser source brand | ipg Raycus |
| Weight (kg) | 1200 KG |
| Key selling points | Competitive Price |
| Warranty | 1 Year |
| Mode of Operation | Continuous wave |
| Configuration | 3-axis |
| Products handled | Sheet Metal and Tube |
| Feature | Water-cooled |
| CNC or not | Yes |
| Product name | Fiber Laser Metal Cutting Machine |
| Core Components | Bearing, Laser Source |
| Place of origin | China |
| CNC or Not | Yes |
| Laser power | 1500w-6000w |
| Driver system | Japan Fuji Servo and driving |
| Control cabinet | Separated control cabinet with air conditinoer |
| Laser source | ipg Raycus |
|
Speification-240mm chunkThere chucks
|
|
|
Round pipe:20~230mm
|
Square Pipe: 20*20~160*160mm
|
|
Front Chuck: pneumatic
|
|
|
Back Chuck: pneumatic
|
|
|
Max bearing capacity for single pipe:200kgs
|
|
|
Length: 6m
|
|

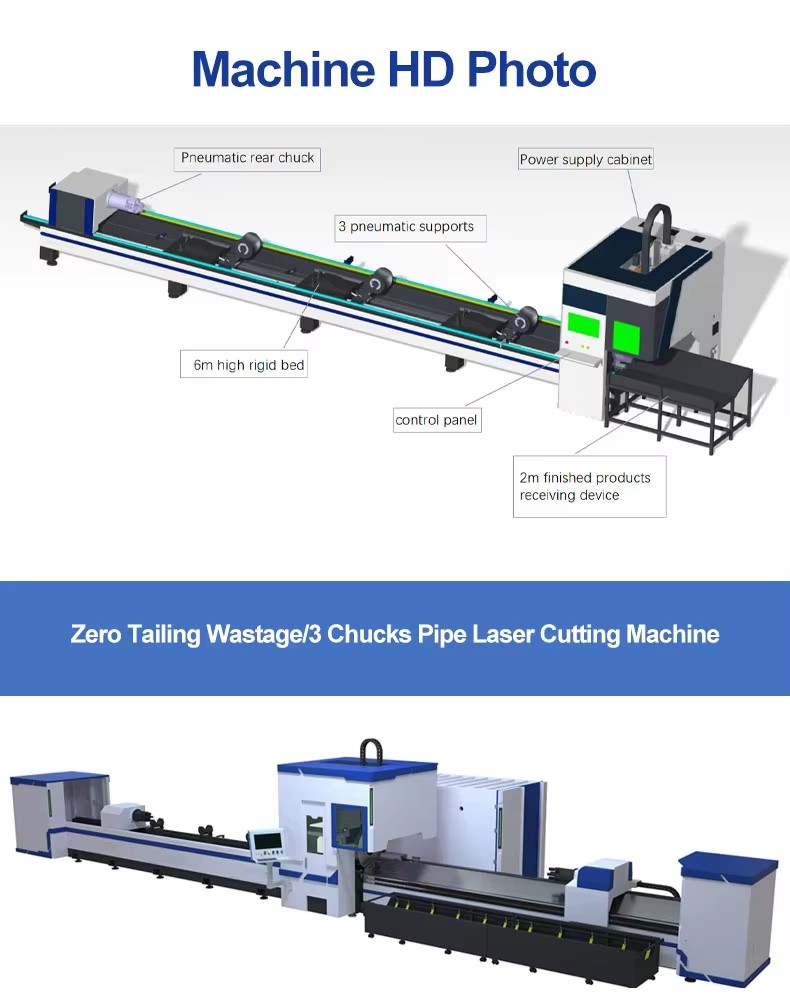

☆ Three chucks and 8pcs of Ethercat motor
☆ Cutting head is capable of moving from front of middle chuck to back side, to reduce wastage and increase accuracy(if the last piece of pipe length more than 850mm, wastage zero)
☆ With auto unloading optional
☆ Software: Tubepro, Nesting software: TubesT
|
Speification-220mm chuck There chucks
|
|
|
Round pipe:20~219mm
|
Square Pipe:20*20~150*150mm
|
|
Front Chuck: pneumatic
|
|
|
Middle Chuck: pneumatic
|
|
|
Back Chuck: pneumatic
|
|
|
Max bearing capacity for single pipe:200kgs
|
|
|
Length: 6m
|
|
|
Total Machine weight:10 tons
|
|

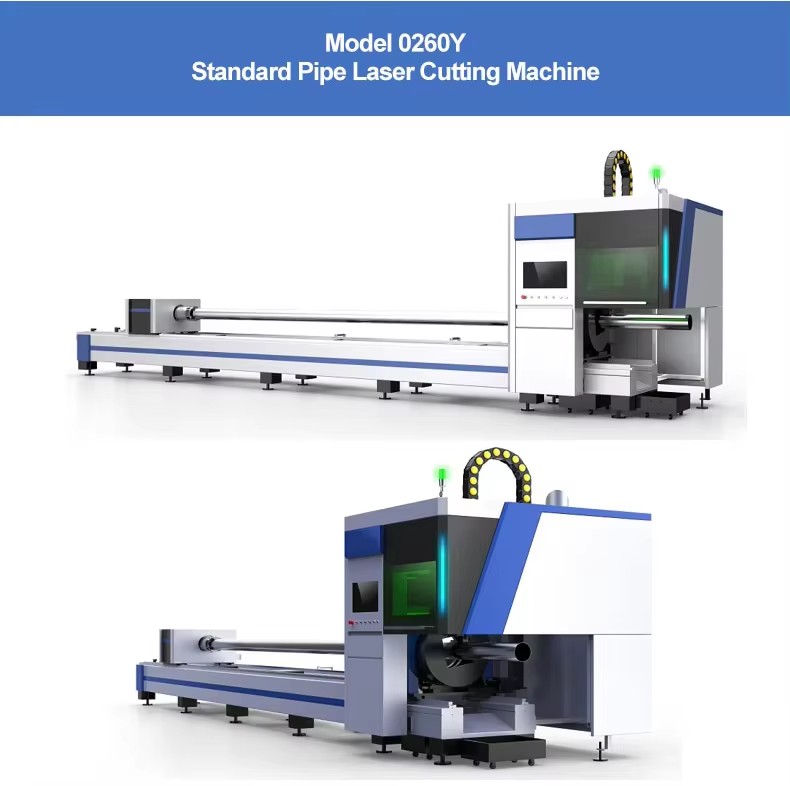

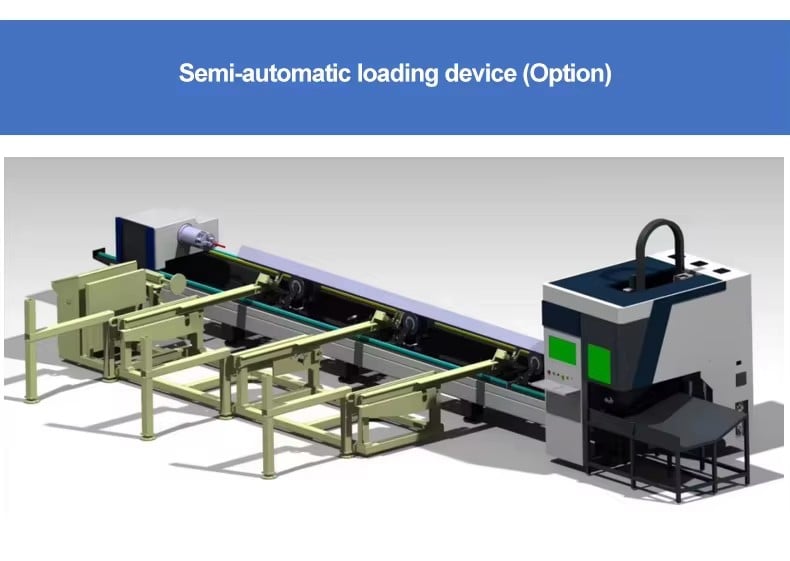

0260Y series tube laser cutting machine isdesigned to be easily connected to semiautomatic loading device that can be largelyreducing labor works
Semi-automatic loading device can be usedfor loading square tubes,round tubesrectangular tubes,other shape need to bemanual loading
During the operation, necessary manualassistance is needed, tubes need to beplaced manually on the loading platform, andwill be transported to the machine by theloadina device
|
Min. length of single tube
|
mm
|
5000
|
|
Max. length of single
|
mm
|
6000
|
|
Max. weight of single tube
|
kg
|
200
|
|
Max. load of tube storage
|
kg
|
3000
|
Automatic loading is only suitable for regular tube like round pipe, square pipe and rectangle pipe, not suitable for unregular tub like oval, triangle, C and so on
Loading time: 1st pipe 70s for round tube, 100s for square tube, from 2nd 58s (from waiting area)
|

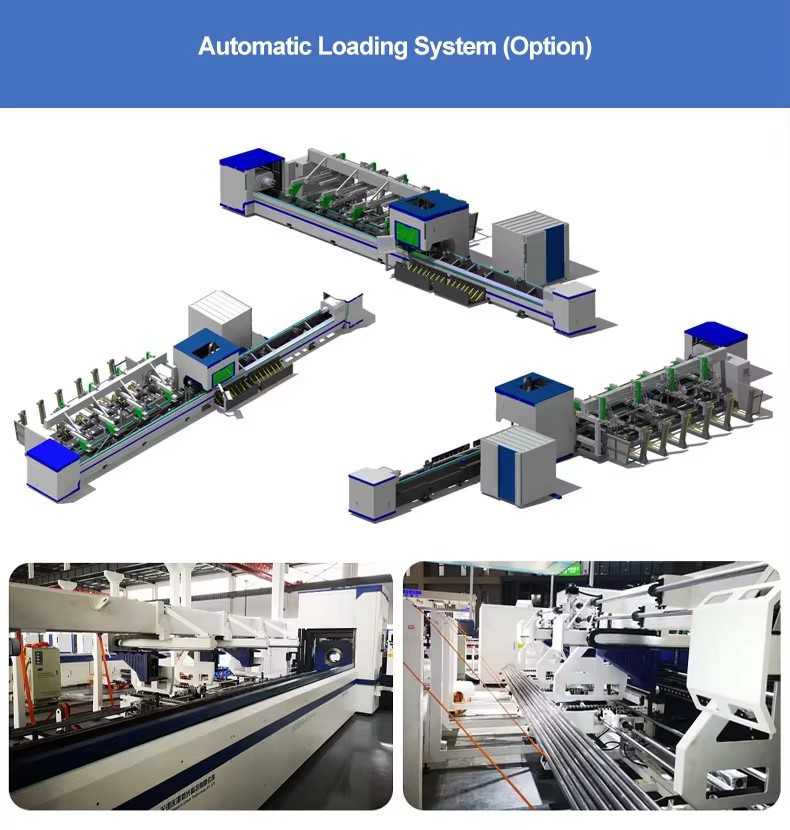

Automatic loading system specification
|
|
|
Round pipe:20~200mm
|
Square Pipe:20*20-140*140mm
|
|
Front Chuck: pneumatic
|
|
|
Middle Chuck: pneumatic
|
|
|
Back Chuck: pneumatic
|
|
|
Length: 6m(auto loading pipe range:4500-6100mm)
|
|
|
Max Loading:
|
|
|
bundle: 3tons
|
Single pipe:200kgs
|
