Electric Erosion EDM Machine Applications Wire Erosion Suppliers Wire Cutting Machine for Metal Processing

Key attributes

Industry-specific attributes

Other attributes

Packaging and delivery

Product descriptions from the supplier

Video Description

wire edm machine -- Optional:

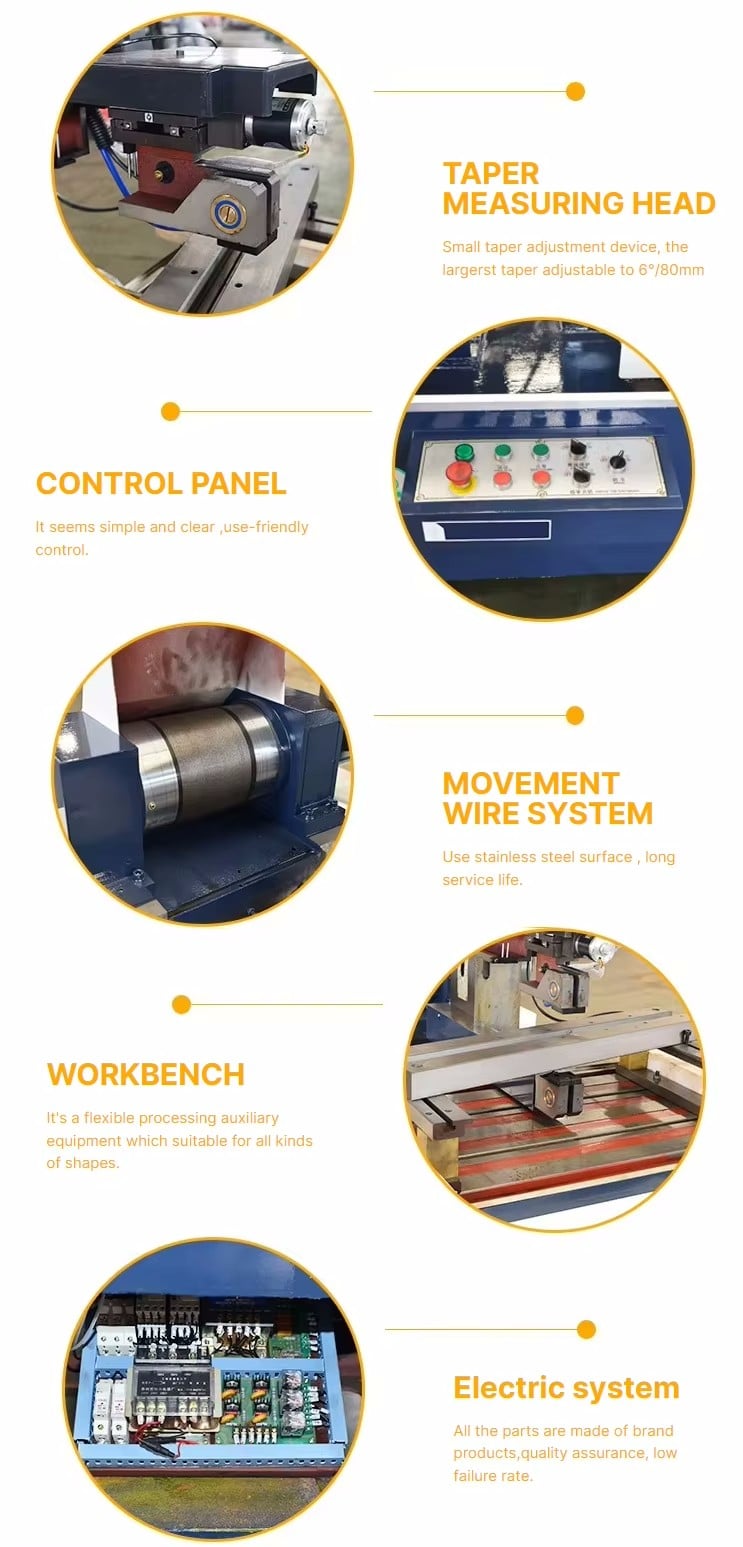

 1.Taper cutting appliance. (±3°, ±30°)
 2.Straight guide rail
 3.Protective cover
 4.high speed controlling system
 5.medium-feeding wire controlling system
 6.integrated machine appliance
 7.autocut system,HL system,WinCut system,HF system
 8.DK77 Series can choose the Cutting Magnets
 9.DK77 Series can choose the Cutting Aluminium

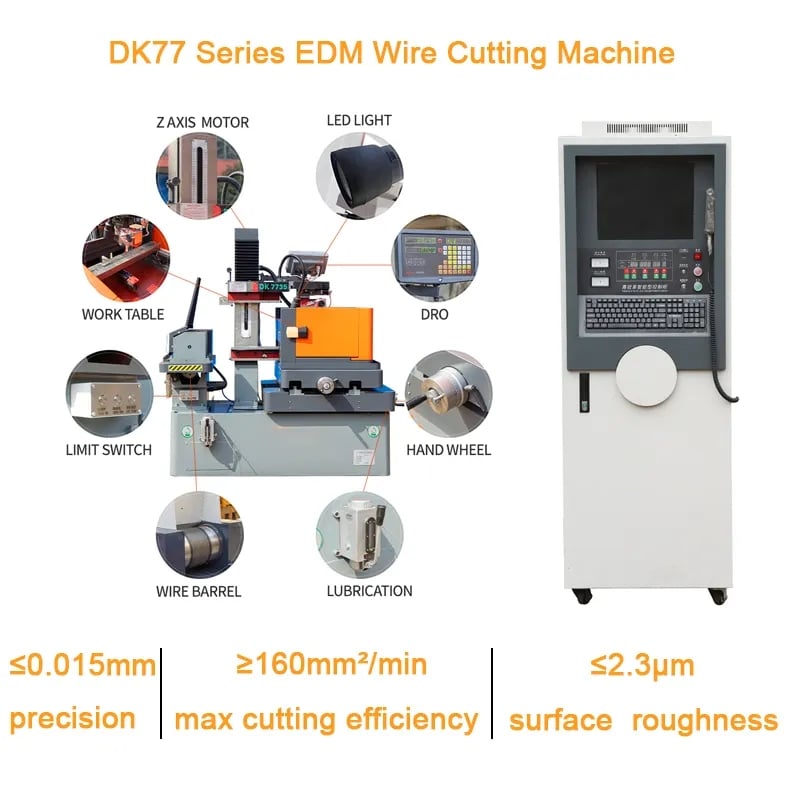

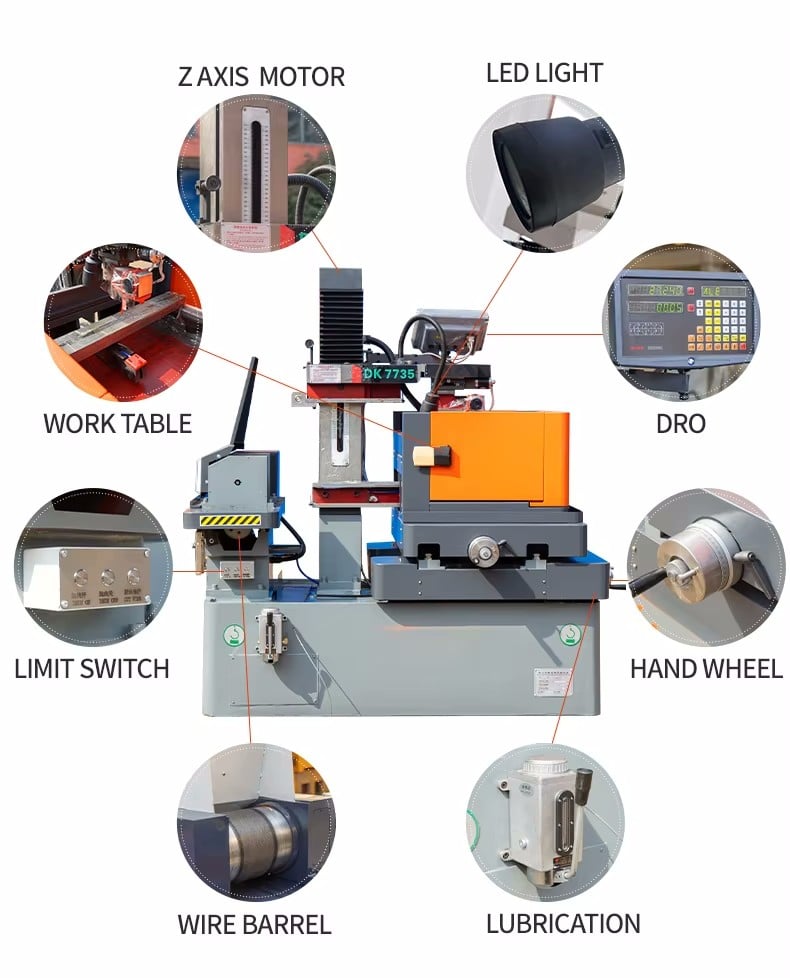

 Features of the cnc wire cut edm machine:

 Special supporting design of the machine with high strength and heavy loading capacity.
 The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.
 The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.
 The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good wear resistance.
 The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high
 transmission efficiency, good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is almost 0.Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).

Wire Edm Machine--Parameter
Model	Working table size	Travel of working table	Maximum cutting thickness	Taper machining	Maximum load weight	Optimum surface roughness
DK7725	400x579mm	250x320mm	300mm	3-6°/80mm	300kg	Ra<2.5um
DK7732	680x440mm	320x400mm	400-500mm	3-6°/80mm	400kg	Ra<2.5um
DK7735	740x470mm	350x450mm	500mm	3-6°/80mm	450kg	Ra<2.5um
DK7740	760x540mm	400x500mm	400-500mm	3-6°/80mm	600kg	Ra<2.5um
DK7745	920x540mm	450x630mm	400-500mm	3-6°/80mm	750kg	Ra<2.5um
DK7750	1147x655mm	500x800mm	600-800mm	3-6°/80mm	800kg	Ra<1.0um
DK7763	1380x800mm	630x1000mm	600-800mm	3-6°/80mm	2000kg	Ra<2.5um
DK7780	1600x1000mm	800x1200mm	400-800mm	3-6°/80mm	1500kg	Ra<2.5um
DK77100	1820x1180mm	1000x1400mm	1000mm	3-6°/80mm	4000kg	Ra<2.5um
DK77120	1340x2000mm	1200x1600mm	600-1000mm	3-6°/80mm	7000kg	Ra<2.5um

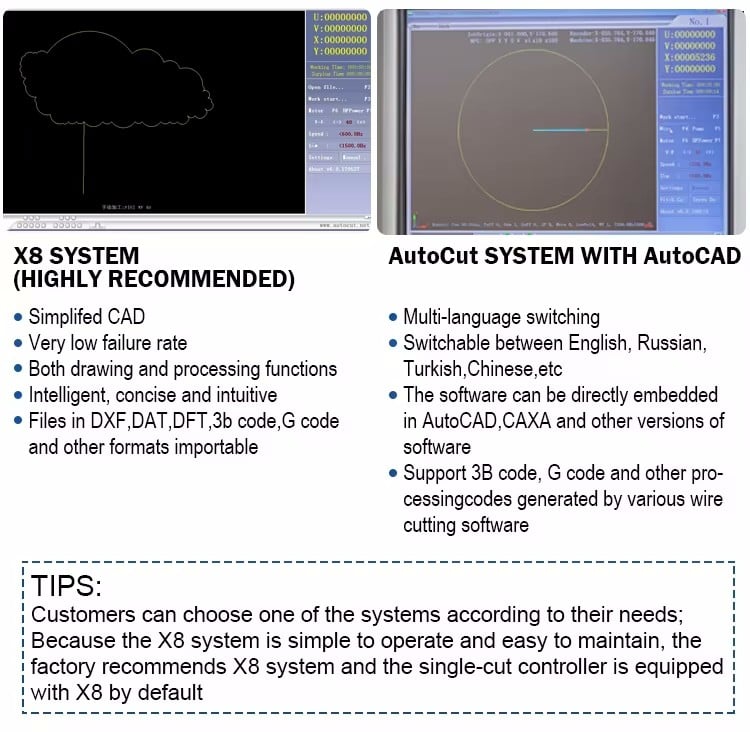

Software System

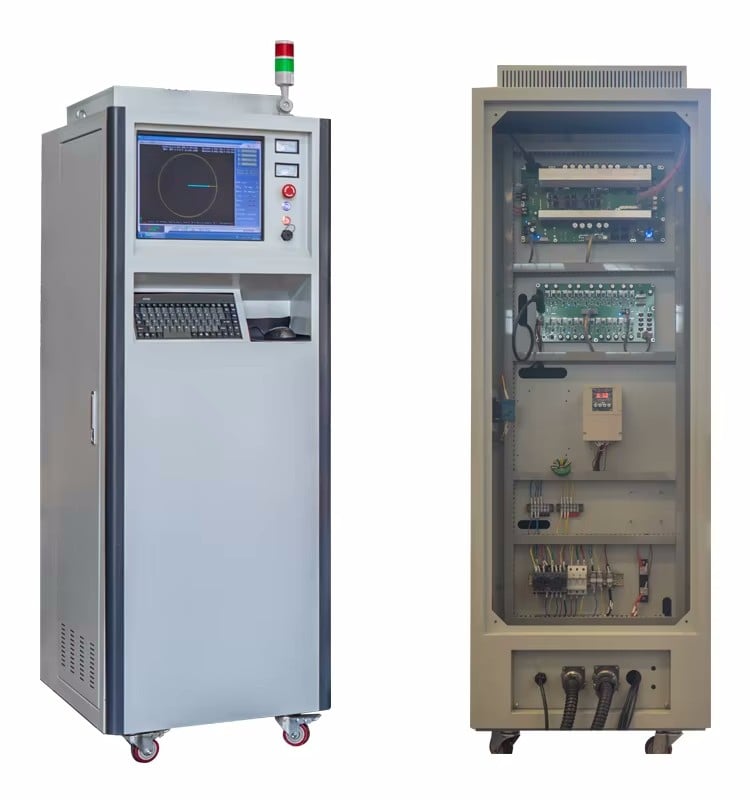

Electric Cabinet

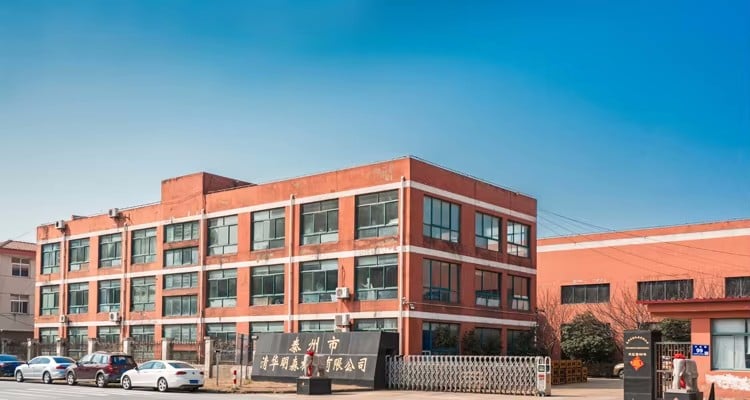

Company Profile



Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2008, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.
