- Type: horizontal
- Max. Length of workpiece (mm): 200
- Machining capacity: heavy duty
- Max. Weight of workpiece(kg): 800
- No. Of spindles: single
- Number of axes: 2
- Travel (x axis)(mm): 1950 mm
- Travel (z axis)(mm): 380 mm
- Positioning accuracy (mm): 0.01
- Repeatability (x/y/z) (mm): 0.01
- Voltage: 380v
- Tool post stations: 4
- Weight (kg): 5000
- Warranty: 1 year
- Range of spindle speed(r.p.m): 50 - 600 r.p.m
Key attributes
Industry-specific attributes
| type | Horizontal |
| max. length of workpiece (mm) | 200 |
Other attributes
| machining capacity | Heavy Duty |
| max. weight of workpiece(kg) | 800 |
| no. of spindles | Single |
| number of axes | 2 |
| travel (x axis)(mm) | 1950 mm |
| travel (z axis)(mm) | 380 mm |
| positioning accuracy (mm) | 0.01 |
| repeatability (x/y/z) (mm) | 0.01 |
| voltage | 380V |
| tool post stations | 4 |
| weight (kg) | 5000 |
| warranty | 1 Year |
| range of spindle speed(r.p.m) | 50 - 600 r.p.m |
| cutting torque | 1.12 N.m |
| width of bed (mm) | 400mm |
| place of origin | Jiangsu, China |
| dimension(l*w*h) | 2810x1000x1275mm |
| brand name | ChuangYuan |
| model number | C6240 |
| cnc control system | FANUC |
| key selling points | Long Service Life |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| CNC or Not | CNC |
| Automatic Grade | Automatic |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Keyword | CNC Lathe Machine |
| Max. swing over bed | 410mm |
| Max. swing over carriage | 250mm |
| Max. workpiece length | 1500mm |
| Weight | 2600KG |
| Power(W) | 5.5KW |
| Max. Swing Diameter | 410mm |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 291X110X130 cm |
| Single gross weight: | 2600.000 kg |

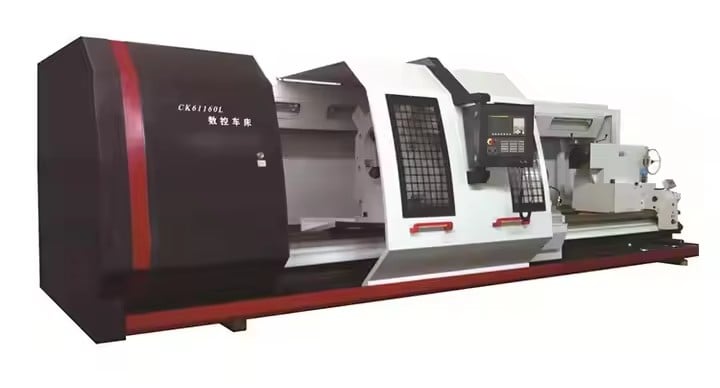

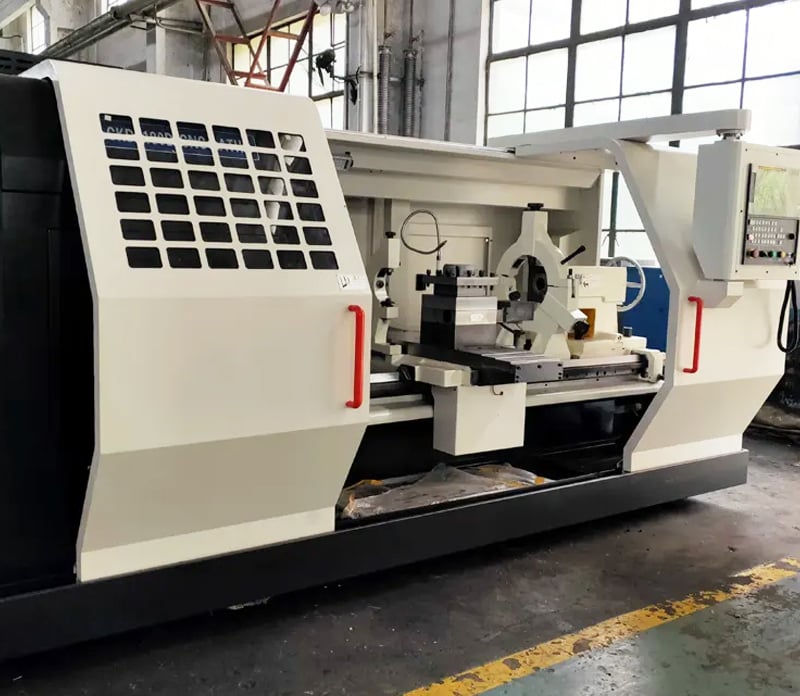

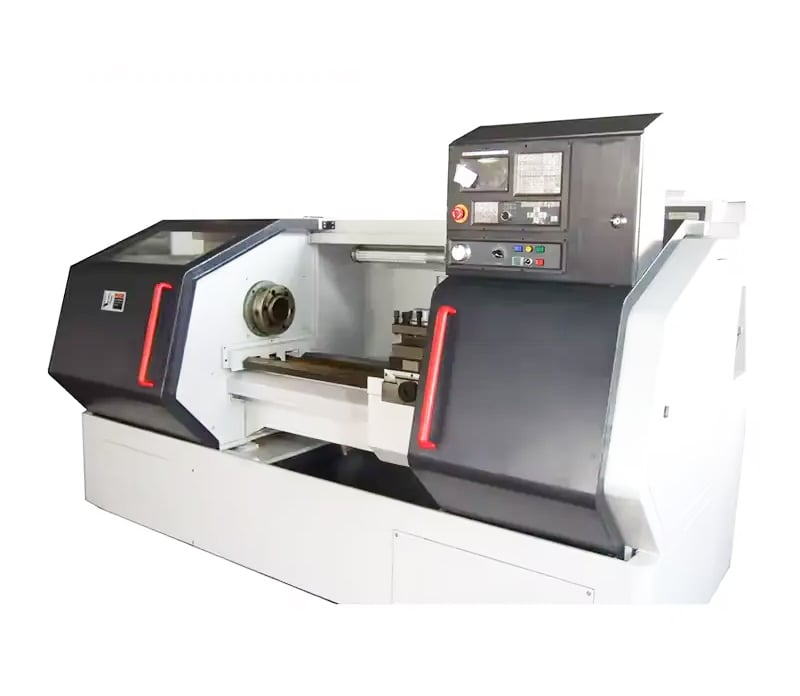

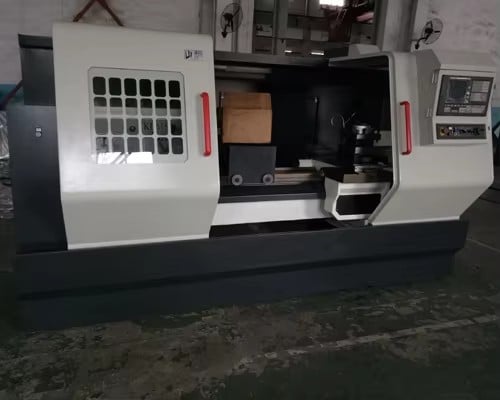

CNC Lathe Machine

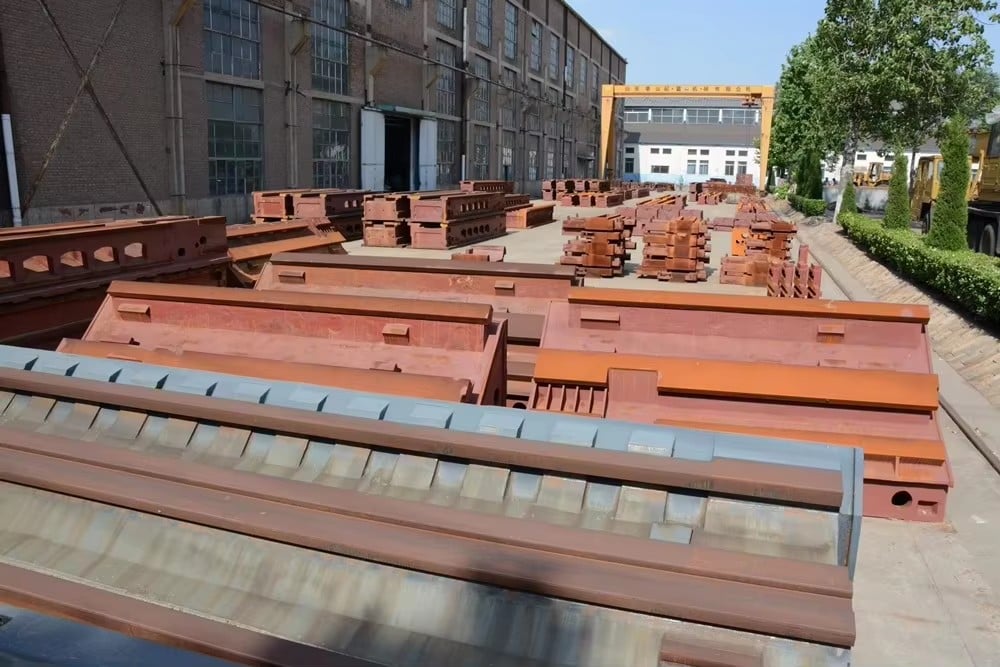

1. We have our own foundry,we made castings by ourselves,you can come to see castings and machines at the same time!
2. Our casting is of top quality,our foundry is also supplier of Japan MAZAK and Germany DMG.
3. Lathe guideways are quenched! Guideway hardness is more than HRC52.
4. Quenched guideways has following advantages:higher abrasive resistance,higher precision and longer life!
5. Gears are through high frequency quenching and grinding treatment,improving the abrasive resistance and service life and reduce the noise when processing!

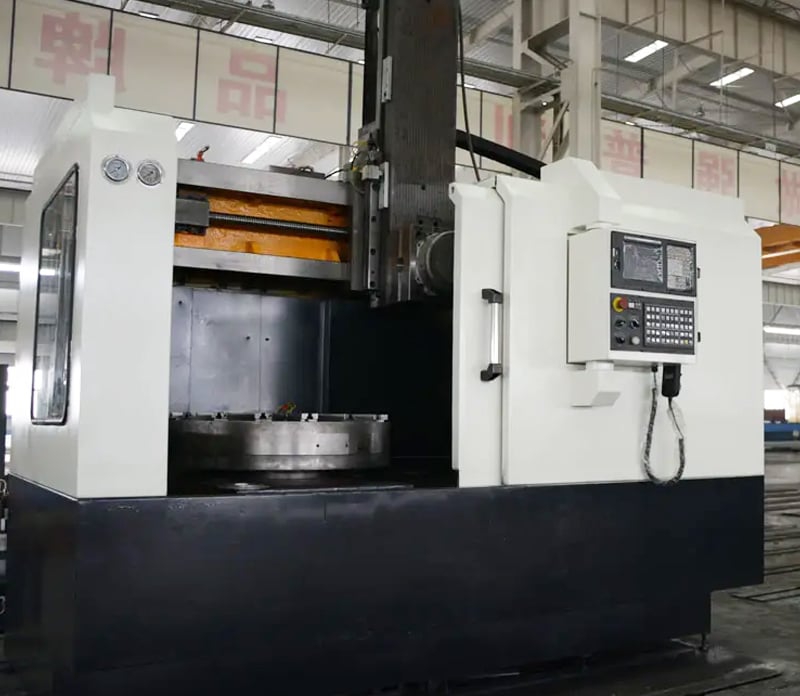

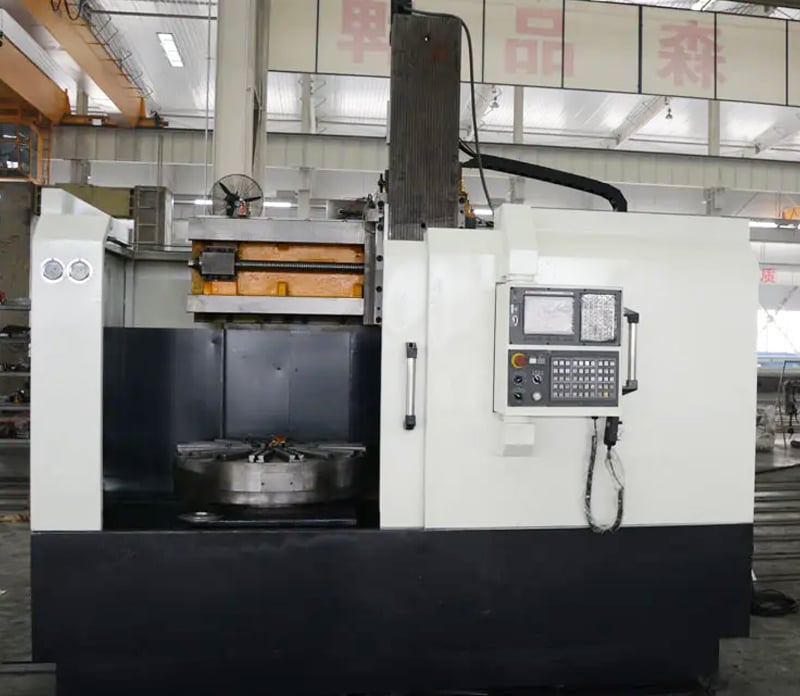

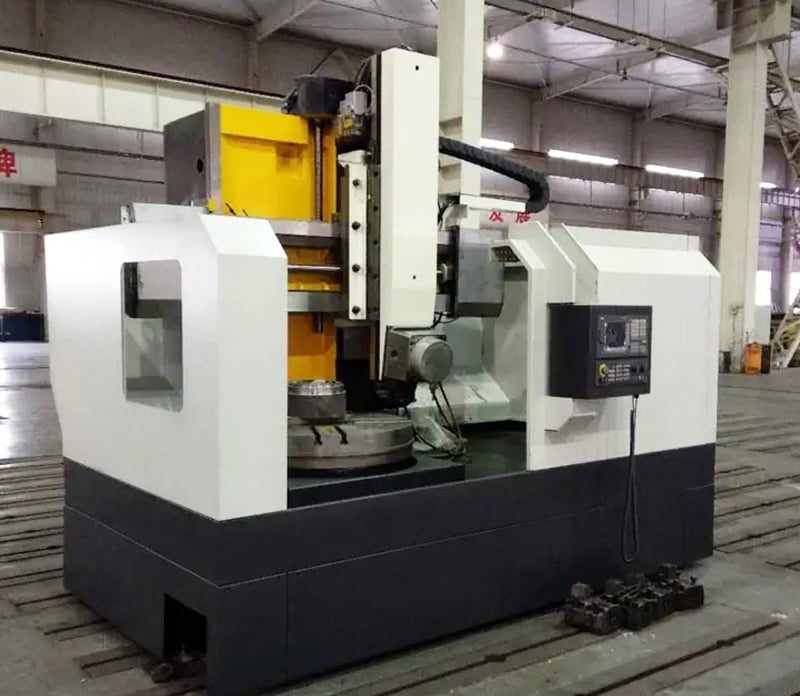

6. Wide product range:Conventional horizontal lathe,cnc horizontal lathe,heavy duty horizontal lathe 100T,slant bed lathe,single column and double column vertical lathes.
 |
 |
 |

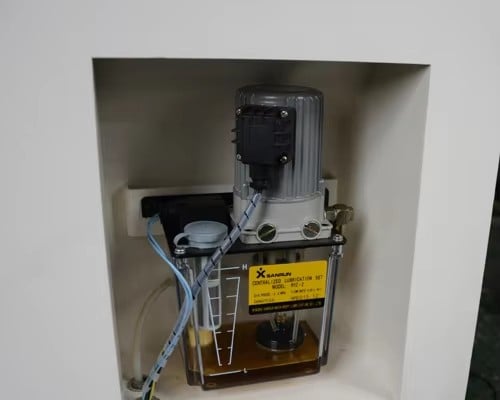

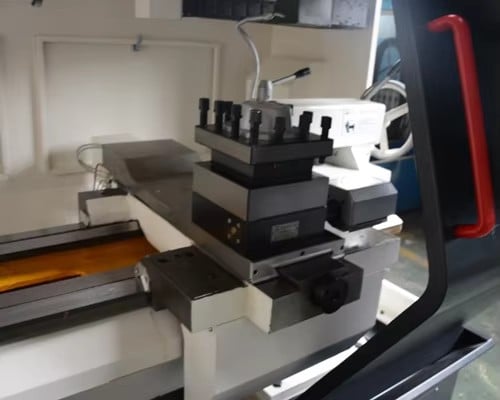

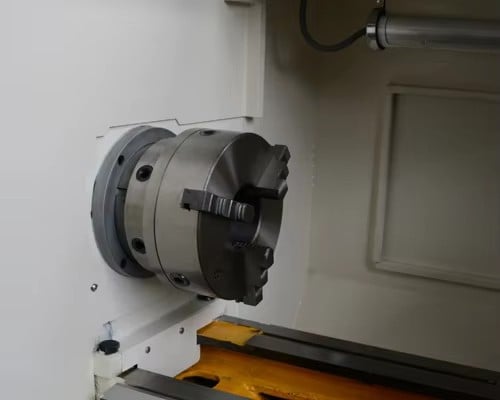

| Tool Holder | Lubrication Device | Chuck |
 |
 |
 |

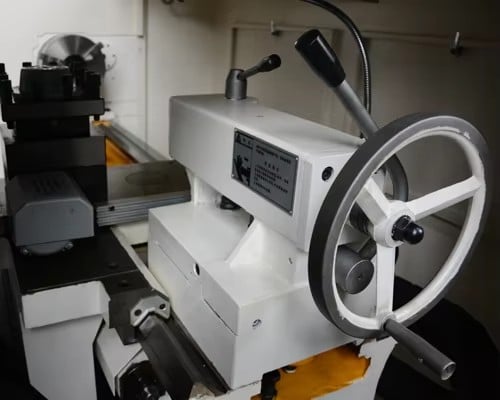

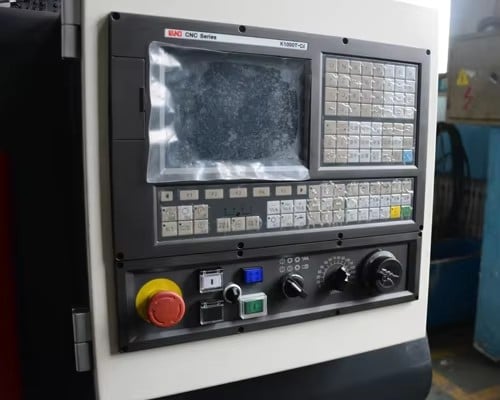

| Tailstock | System panel | CNC lathe bed |
Q:Are you manufacturer?

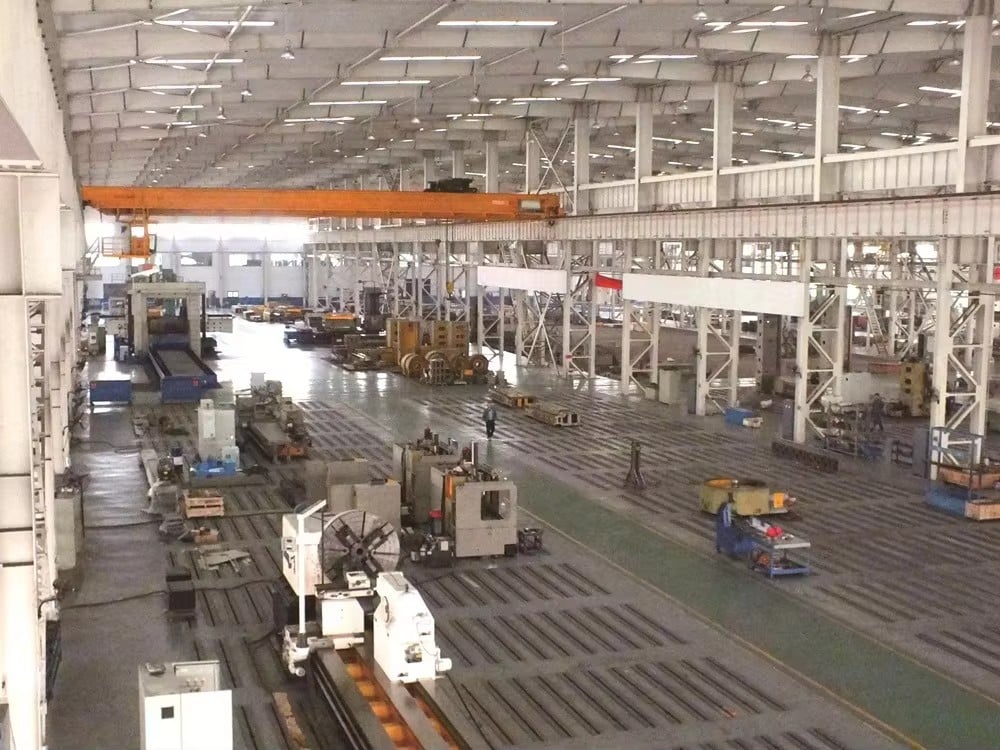

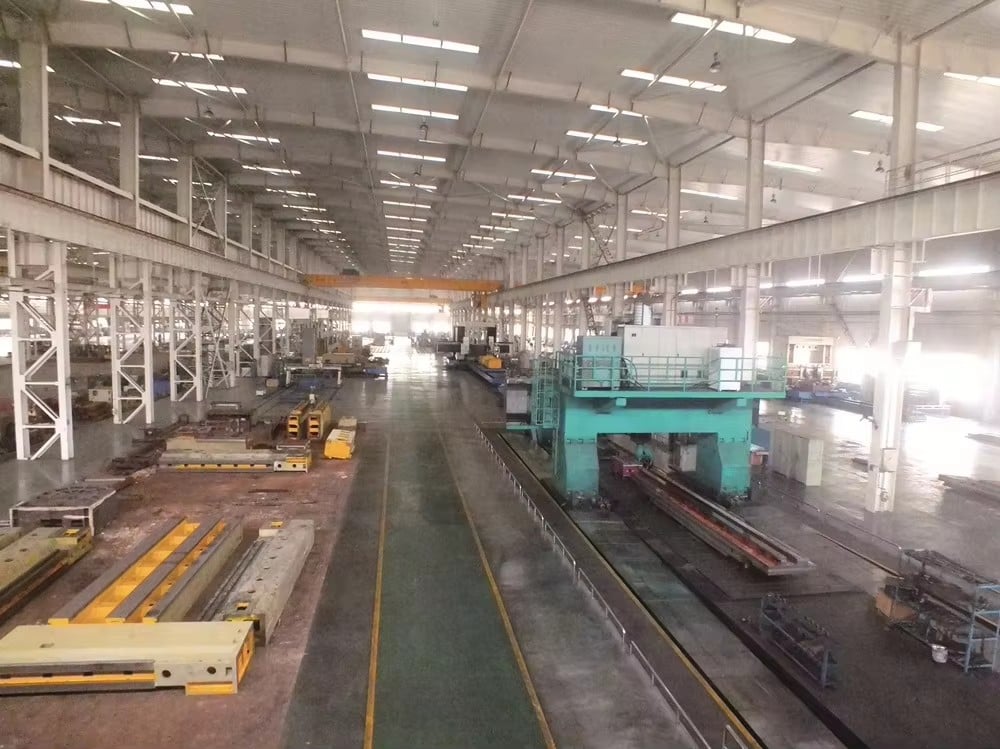

A: Yes, we are manufacturers of cut to length line,we have our own technical team, and about 80,000 sq.m workshop, welcome to visit us!
Q:What payment terms do you accept?
A: We are flexible on payment terms,we can also help you on financing,please contact us for details!
Q:What information will you need to make the proposal?
A: Coil weight,coil width,coil thickness,coil material, max. cutting length, cutting speed and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately,we provide free pre-sales consultant service. Also we can help you to solve the worker training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer’ s port.
Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful.
During the warranty time, if the device can 't work normally, after receiving your notice, within 24 hours, we will send engineers to your factory for processing; If it is artificial damage,then need to charge a cost.
Each machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q:Why choose you?What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 20 years.Our cut to length line are exported to many countries in the world. You can get higher quality product & better professional service from Hitech with same price.
